19 Inch Rack RAL7035 Grey Color Outdoor Telecom Cabinet With Battery Rack
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | ESTEL |
| Certification: | IP55 |
| Model Number: | ET9090210B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case with pallets |
| Delivery Time: | 35 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 |
|
Detail Information |
|||
| Internal Space: | 19inch Rack And Battery Shelves | Material: | Galvanized Steel |
|---|---|---|---|
| Mounting: | Floor Mounted | Cooling: | Air Conditioner |
| Illumination: | LED Light | Insulation: | PEF 20MM |
| Highlight: | 19 Inch Outdoor Battery Cabinet,Grey Color Outdoor Battery Cabinet,RAL7035 Outdoor Battery Cabinet |
||
Product Description
19 Inch Rack RAL7035 Grey Color Outdoor Telecom Cabinet With Battery Rack
1.19 Inch Rack RAL7035 Grey Color Outdoor Telecom Cabinet With Battery Rack Basic infomation:
(1) External size: W×D×H 900×900×2100mm
(2) One compartment: the upper part is used for installing 19" equipment, the lower part is used for installing battery
(3) With one front door, and anti-theft lock for outdoor cabinet (support padlock)
(4) Material: single wall with heat insulation (5) IP55 (6) Floor mounted, including base
2.19 Inch Rack RAL7035 Grey Color Outdoor Telecom Cabinet With Battery Rack:
- Cooling System: Air conditioner(air conditiner and fan)
- Protection Level: IP55 ,Waterproof,dust proof.
-The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
- The cabinet cooling uses air conditioner and fans.
- Including -48VDC illumination lamp.
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
- All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.
- The cabinet includes 19” standard installation rack.
3.Outdoor Telecom Cabinet Application Area
· Satellite Communication
· Wireless Backhaul
· Cable Television
· Navigation & Positioning
· Military Installation
· Port Security
4. Features Of Outdoor Equipment Cabinet
- Front access to the inside equipment
- IP level: IP55
- Standard 19“ rack for installation
- Outdoor anti corrosion powder coating
- The cabinet is dustproof, sunproof and rainproof, can be used in outdoor harsh environment
- Cabinet cooling: 1500w air conditioner
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding
- High integration, compact structure, easy installation and migration on later stage
- Anti-theft three point lock, excellent keyhole protection device
- All the screws&nuts are stainless steel material
- Support full design according to customer’s requirement
- All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A
5. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1)External Dimension:W×D×H 900×900×2100mm (2)One compartment: including 19” rack. (3)With one front door , with three point lock for outdoor cabinet. (4) Material: galvanized steel, single wall with thermal insulation. |
| 2 | Air Conditioner | 1 | Set |
Cooling Capacity: 1500W Power Supply: 110VAC, 60Hz |
| 3 |
Power Distribution Unit |
1 | Set |
Grade B Lightning Proof AC Input: 63A/2P ×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4. Height: 4U |
| 4 | Fan | 2 | Set | DC48V |
| 5 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 6 | LED Lamp | 1 | PC | DC48V |
| 7 | Package | 1 | Set | Wooden Case |
6.Cabinet Diagram

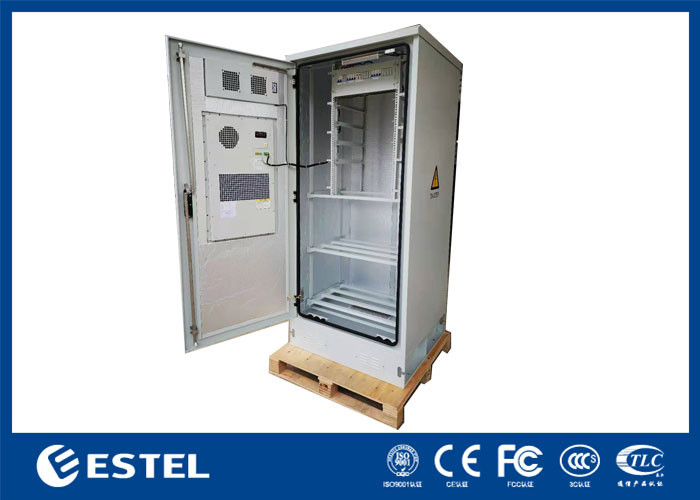

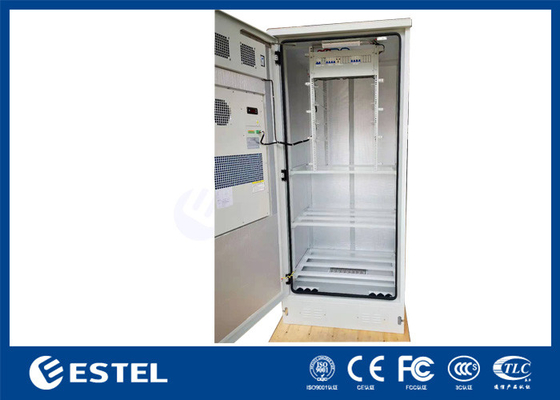

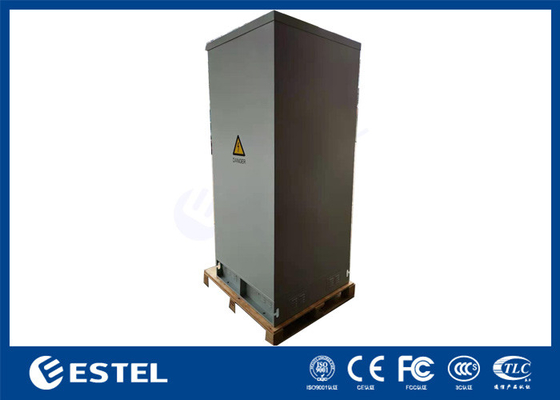

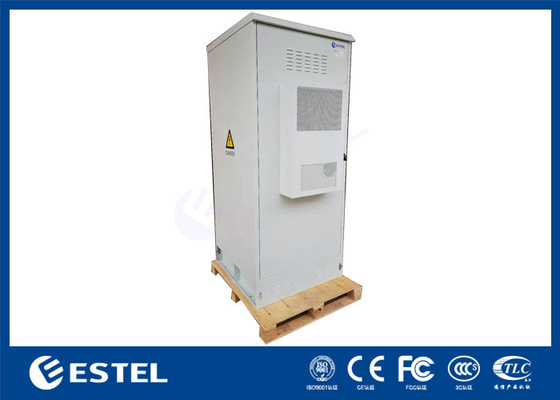

7. Cabinet Picture
8. Cabinet Description
8.1 Cabinet Material
The cabinet is made of galvanized steel, with double wall and the cabinet is assembled type.
8.2 Cabinet Door and Lock
The cabinet door uses embedded structure.
The door opening angle is larger than 110°and the door limit device can limit the opening angle.
The cabinet door lock is theftproof three point lock, supporting padlock.
