Corrosion Resistant IP55 SS304 Telecom Outdoor Cabinet
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number: | ET13065155-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Depends on order quantity |
| Packaging Details: | wooden case |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C,D/A,T/T, Western Union, Paypal, etc |
| Supply Ability: | 5,000 sets per month |
|
Detail Information |
|||
| Construction: | Two Bays | Material: | Stainless Steel SS304, Double Walls With Thermal Insualtion |
|---|---|---|---|
| Space: | 2 Battery Shelves Each Bay, Totally 4 Battery Shelves | Protection: | IP55 |
| Anti-theft: | Anti-theft Battery Bar Design | Coating: | Corrosion Resistant Outdoor Powder Coating |
| Cabinet Lock: | Anti-theft Three Point Lock | External Size: | H×W×D1550×1300×650mm |

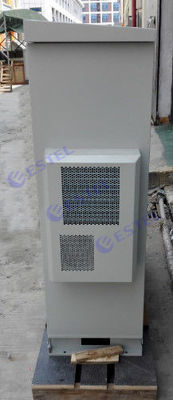

| Cooling: | AC220V 500W Air Conditioner, On The Side Of The Cabinet | Mounting: | Mounted On Concrete |
| Highlight: | SS304 Telecom Outdoor Cabinet,IP55 Telecom Outdoor Cabinet,SS304 battery storage cabinet |
||
Product Description
Stainless Steel IP55 Outdoor Battery Cabinet Two Bay With Side Mounted Air Conditioning For Cooling
Model: ET13065155-1
1. Introduction
2. Specifications
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: H×W×D 1550×1300×650mm |
| Material | Stainless steel SS304, corrosion resistant | |
| Finish | Polyester powder coating | |
| Structure | Double walls | |
| Insulation | 20mm thick PEF | |

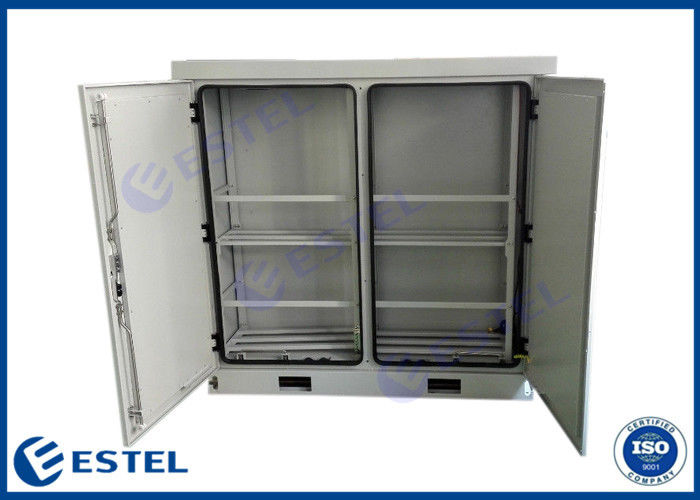

| Layout | 2 compartments, one left compartment and one right compartment. | |
| Installation Method | Battery shelf: 2 battery shelves at left and 2 battery shelves at right | |
| Battery Protection | Vandalism-resistant battery bar | |
| Door | Two front doors: one left door and one right door | |
| Lock | Three point locking system, anti-theft | |
| Hinge | Concealed hinge | |
| Cable Inlet | Cable inlet at bottom of cabinet | |
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Thermal Management | Cooling | Air conditioner |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
3. Features
1) The outdoor battery cabinet is made from stainless steel, best corrosion resistant.
2) Include protection bar in front of the battery shelves, protect batteries from vandalism.
3) Include four battery shelves.
4) Three point locking system, hidden hinges and battery protection bars work togeter to protect batteries from theft.
5) Air conditioner for cooling, can keep the temperature inside the cabinet at a stable level, so as to ensure the batteries a longer life time and better performance.
6) The outdoor battery cabinet provide a secure thermally managed environment for backup battery systems.
7) Bulb door gasket mechanically fastens to the cabinet door frame, for better waterproof.
8) Door ground strap and copper grounding bar for chassis ground.
