Galvanized Steel Three Compartments Shelter Outdoor Rack Enclosures Integrated With Cooling
Product Details:
| Place of Origin: | Shenzhen, China (Mainland) |
| Brand Name: | ESTEL |
| Certification: | ISO9001, IP55 |
| Model Number: | ET210120235A-40U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 35-40 working days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 4,000 sets per month |
|
Detail Information |
|||
| Dimension: | H×W×D 2100mm×1200mm×2350mm | Compartments: | 3 Compartments |
|---|---|---|---|
| Door: | 3 Front Doors | Protection Level: | IP55 |
| Cooling System: | Air Conditioners | Package: | Wooden Case |
| Highlight: | Galvanized Steel Outdoor Rack Enclosures,Integrated Cooling Outdoor Rack Enclosures,Three Compartments Outdoor Rack Enclosures |
||
Product Description

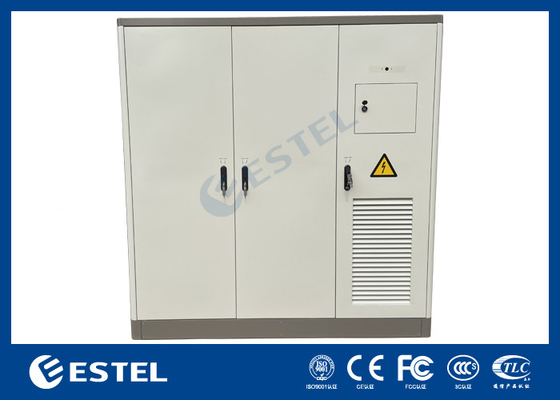

Galvanized Steel Three Compartments Shelter Outdoor Rack Enclosures Integrated With Cooling
1. Applications of Galvanized Steel Three Compartments Shelter Outdoor Rack Enclosures Integrated With Cooling
Outdoor rack enclosures are specifically designed to withstand harsh weather conditions, offering protection for telecommunications equipment and infrastructure in outdoor environments. These cabinets are essential for a variety of applications, including:
Telecommunications: Widely used in the telecommunications industry, outdoor rack enclosures house and protect critical network components such as switches, routers, power supplies, and other sensitive electronics.
Wireless and Broadband CATV: These enclosures support wireless and broadband CATV networks, facilitating the distribution of cable television signals and high-speed internet connectivity.
Base Stations: Outdoor telecom cabinets play a crucial role in supporting base stations for wireless communication networks, ensuring reliable connectivity and coverage.
Solar Installations: Often deployed in solar-based setups, outdoor rack enclosures protect equipment related to solar power generation and distribution.
Wireless Cell Sites and Switches: These cabinets are employed in wireless cell sites and switches, supporting mobile communication networks and ensuring seamless connectivity.
Transmission Terminals: Outdoor rack enclosures are utilized in transmission terminals to house equipment that transmits and receives data, enhancing communication efficiency between different network nodes.
Data Centers: In outdoor data centers, these cabinets provide protection and housing for critical networking equipment and servers.
Transportation Infrastructure: Outdoor rack enclosures are used in transportation systems, such as highways, railways, and airports, to support communication systems and ensure smooth operations.
These examples illustrate the diverse applications of outdoor rack enclosures. Their versatility, durability, and weatherproof design make them an essential component across various industries and sectors.
2. Galvanized Steel Three Compartments Shelter Outdoor Rack Enclosures Integrated With Cooling Parameters
| Item | Name | Technical parameter |
| 1 | Size | External Size:H×W×D=2100mm×1200mm×2350mm |
| 2 | Cabinet layout | Three compartment, Two bay for installing 19inch/23inch equipment,One bay for backup battery |
| 3 | Cabinet material | Double layer Galvanized steel with PEF thermal isolation |
| 4 | Security design | Embedded door, embedded hinges, 3-point security lock |
| 5 | Protection level | IP55,NEMA 4 or 4X |
| 6 | Color | RAL7035 |
| 7 | Climate control | AC220V air conditioner and DC48V fan |
| 8 | Lighting system | Door sensor+48V LED light(when open the door, the LED will light on;When the door is closed, the LED will go out.) |
| 9 | Grounding system | 200A Copper bar(13 point M6 and 2 point M8) |
| 10 | Working temperature | - 40 ℃ ~ + 55 ℃ |
| 11 | Working Humidity | ≤ 95% (+ 40 ℃) |
| 12 | Air Pressure | 62kpa ~ 106kpa (similar to 0m ~ 5000m altitude) |
3.Cabinet Compartments Instructions:
Note: can be customized.
Right compartment:includes 4 battery shelves for installing batteries.
Middle compartment: includes 42U racks for installing equipments.
Left compartment: includes 42U racks for installing equipments.
4. Cabinet Cooling System

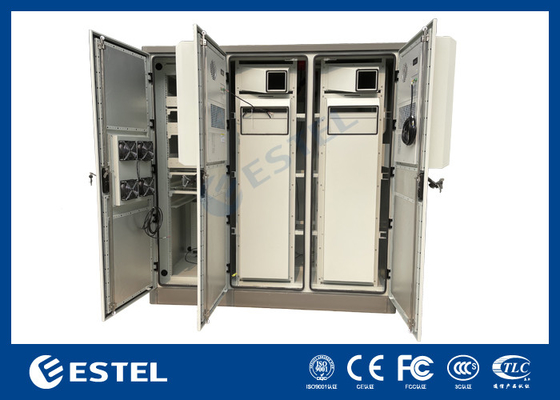

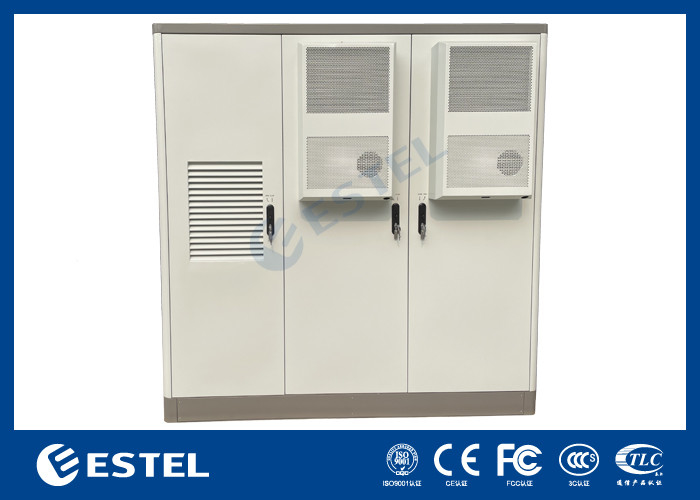

There are 3 air conditioners installed on the 3 front doors to make the temperature inside the cabinet stable for the equipments operating normally.
Note:The air conditioner can also choose AC 110V 60HZ or DC 48V, and the fan can also choose AC 110V or 220V.
5. Accessories list
5.1 Standard accessories list:
Includes: locking door with air conditioner,19inch rackmount rails, floormount plinth or hardwares.
| No | Name | Quantity | Unit | Technical parameter |
| 1 | Outdoor rack enclosure | 1 | set | 1)External Size:H*W*D=2100mm×1200mm×2350mm |
| 2 | Air conditioner | 1 | set | option |
| 3 | Fan | 1 | set | DC48V with temperature control |
| 4 | LED Lamp | 1 | set | DC48V,used for illumination in the cabinet |
| 5 | Grounding bus bar | 1 | set | 200A Copper bar(13 point M6 and 2 point M8) |
| 6 | Equipment supporting | 3 | set | |
| 7 | Package | 1 | set | Wooden box , wooden pallet+stretch film or wooden pallet +wooden box |
5.2 Optional accessories:
The following accessories are available for optional ordering.
| Item | Technical parameter |
| EMS |
19 inch environment monitoring unit 1U; DC48V, support RS232,RS485, SNMP,TCP/IP communication protocol. 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor. Environmental monitoring system is a comprehensive network of devices and technologies designed to track and assess various aspects of the environment. This system plays a crucial role in gathering data to understand environmental conditions, detect changes, and manage natural resources. |
| Fire Extinguisher |
Hot aerosol fire extinguishing device is a new, efficient and environment-friendly fire fighting product with Vanguard International Semiconductor Corporation level, which is the first in China. It is a high-tech green fire protection product that benefits humanity, born under the background of the International Montreal Agreement and China's increased awareness of environmental protection. It is an ideal substitute for halon fire extinguishing devices and is suitable for relatively enclosed spaces such as distribution cabinets.
Electric or hot start: Hot start temperature ≥170℃; Electric start temperature ≥700mA. |
| Wiring type PDU |
AC input:63A/2P*2 with interlock； AC/SPD:30-60KA/2P*1； AC output:63A/1P*1,32A/1P*1,16A/1P*3,3 holes Maintenance socket*1 |
| Integrated PDU | Can be customized according to customer requirements. |
| Rectifier | AC220V/110V transfer to DC48V, Connect the battery as a backup power,also can be customized according to customer requirements. |
| ODF |
Optic Distribution Frame (ODF) is a critical component in a fiber optic network infrastructure. It serves as a centralized point for the termination, organization, and distribution of fiber optic cables. The primary purpose of a distribution frame is to facilitate efficient and organized connectivity, making it easier to manage, troubleshoot, and expand the network.
Function: 1)Termination Point; 2)Organization and Management; 3)Splicing Trays; 4)Labeling and Documentation; 5)Security and Protection; 6)Scalability;
Can be customized according to customer requirements. |
| Backup battery | Can be lithium battery or lead acid battery. |
