IP65 Outdoor Telecom Cabinet Aluminum Plate With Dual Doors Natural Ventilation
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | ET6565170-EQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case with pallets |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 4000 pcs/month |
|
Detail Information |
|||
| Material: | Aluminum | Cooling: | Natural Ventilation |
|---|---|---|---|
| Feature: | Front And Rear Access | User Space: | 32U |
| Ingress Protection: | IP65 | Door: | 1 Front Door & 1 Rear Door |
| Highlight: | Natural Ventilation Outdoor Telecom Cabinet,Aluminum Plate Outdoor Telecom Cabinet,IP65 Outdoor Telecom Cabinet |
||
Product Description
IP65 Outdoor Telecom Cabinet Aluminum Plate With Dual Doors Natural Ventilation
IP65 Outdoor Telecom Cabinet Aluminum Plate With Dual Doors Natural Ventilation overview :
an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment. Both active telecom equipment and passive telecom equipment can be accommodated inside the cabinet.
IP65 Outdoor Telecom Cabinet Aluminum Plate With Dual Doors Natural Ventilation Features:
- Front and Rear access to the inside equipment
-
High protection grade: IP65
-
Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
- Outdoor anti corrosion powder coating
- The cabinet is dustproof, sunproof and rainproof, can be used in outdoor harsh environment
- Cabinet cooling: Natural Ventilation
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding
- High integration, compact structure, easy installation and migration on later stage
- All the screws & nuts are stainless steel material
- Support full design according to customer’s requirement
- The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
IP65 Outdoor Telecom Cabinet Aluminum Plate With Dual Doors Natural Ventilation Technical Parameters:
|
Configuration |
Item | Technical Parameter |
| Cabinet | Model | ET6565170-EQ |
| Protection Level | IP65 | |
| External Dimension | H1700mm×W650mm×D650mm | |
| Internal Dimension | 19 inch 32U | |
| Material |
Aluminum, single wall. |
|
| Insulation | No | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Door and Lock | One front door and one rear door. Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Ventilation | Natural ventilation | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters |

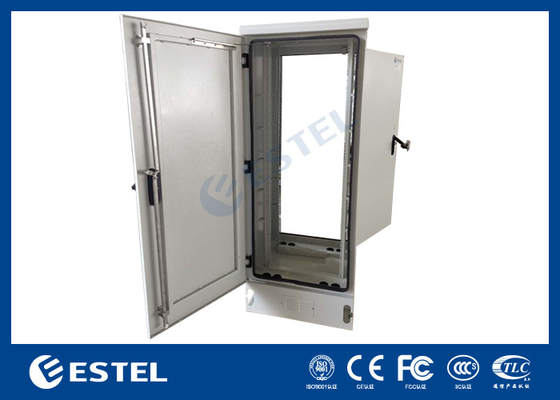

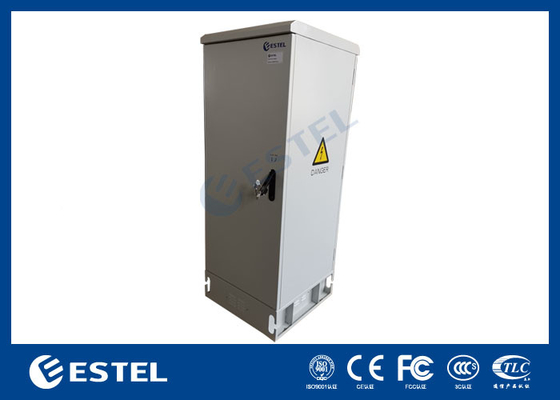

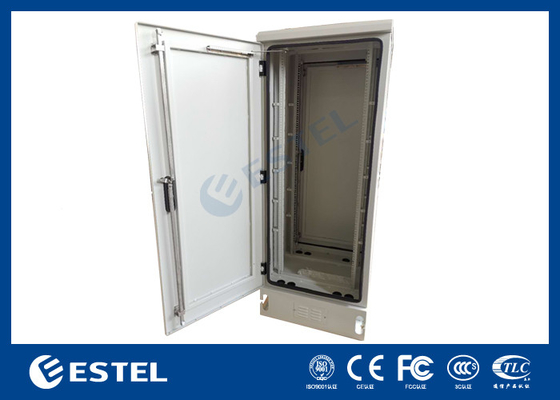

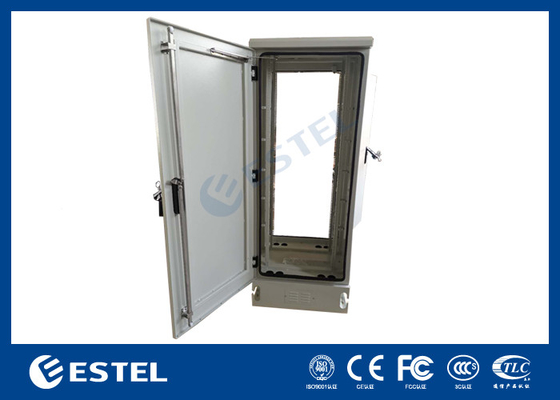

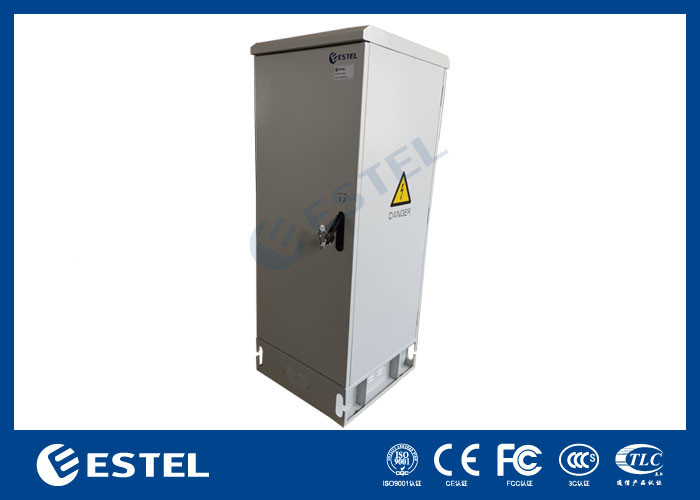

Cabinet Detail:
