Outdoor Sunproof and Rainproof SMART Surveillance Box Pole Mounted With RS485 Communication
Product Details:
| Place of Origin: | Shenzhen, China (Mainland) |
| Brand Name: | ESTEL |
| Certification: | ISO9001, IP55 |
| Model Number: | ENPBL03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 15 -20working days |
| Payment Terms: | T/T, Western Union, Paypal, etc |
| Supply Ability: | 8,000 sets per month |
|
Detail Information |
|||
| Material: | Galvanized Steel | Alarm Input: | 2 Channels,switching Signalinput |
|---|---|---|---|
| Protection Level: | IP55 | Proof: | Dustproof, Sunproof And Rainproof |
| Color: | White | Alarm Output: | 1 Channel Programmable On-off Signal Output |
| External Size: | 500×380×220mm(L×W×H) | Interface: | RS485/232 |
| Highlight: | SMART Surveillance Box Pole Mount,RS485 Surveillance Box,Outdoor Sunproof Surveillance Box |
||
Product Description
SMART Surveillance Box Pole Mounted Network Switch Box With RS485 Communication
SMART Surveillance Box Pole Mounted Network Switch Box With RS485 Communication Overview

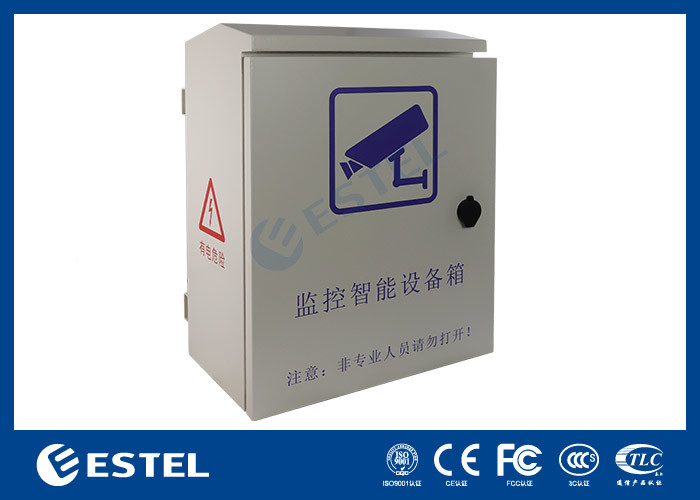

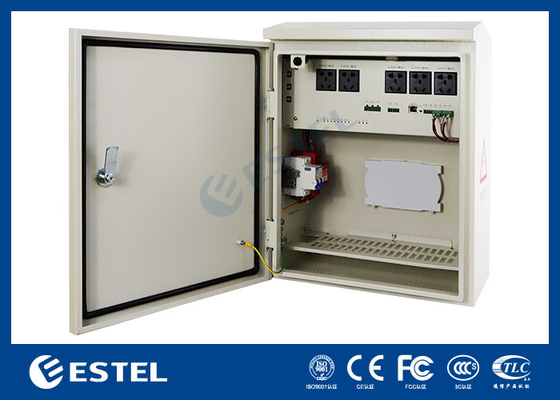

Outdoor SMART Surveillance Box
AC 100~240V, 50/60Hz, 10A IN;
With Surge protection;
240W power module with backup power

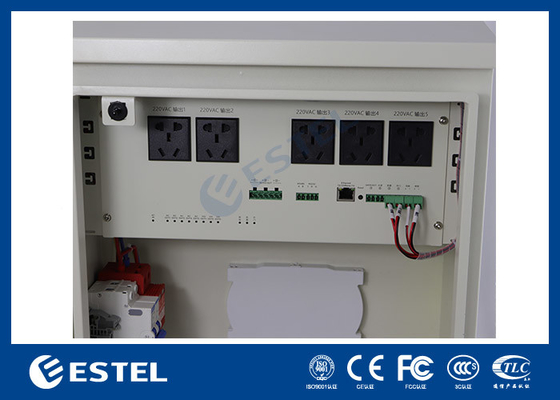

SMART Surveillance Box Pole Mounted Network Switch Box With RS485 CommunicationSpecification
| Item | Specification | |
| AC power IN | AC 100~240V,50/60Hz,10A | |
| AC OUT 1-5 | Controlled AC output 5 channels; support remotecontrol on/off; support shows the single circuit voltage and the current value. |
|
| Reset key | >5S long press:restore factory settings | |
| Surge protection | AC220V,nominal discharge current 20KA(8/20us)Maximum discharge current:40KA(8/20us) |
|
| DC12VOUT 1-3 | DC12Voutput 3 channels,3A,green terminal slot; support remote control on/off; Support shows the single circuit voltage and the current value. |
|
| Rs485 | Rs485 | |
| Rs232 | Rs232 | |
| Alarm input | 2 channels,switching signalinput; channel 1 is default for the door open/closeddetected; |
|
| Alarm output | 1 channel programmable on-off signal output | |
| Fan | 1 pcs,temperature controlled fan | |
| Lamp | One LED lamp,when door open itis on | |
| 10/100Network port | 1*10/100Base-TX | |
| Operating temperature | -20℃~70℃ | |
| Store temperature | -40℃~85℃ | |
| Humidity | 5~95%(no condensation) | |
| Size(L×W×H) | 500 mm×380 mm×220mm | |
| Material | metal | |
| Colour | White | |
SMART Surveillance Box Pole Mounted maintaince:
