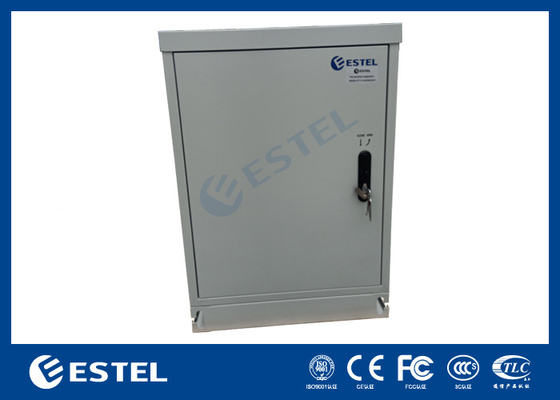

Floor Mounted 19inch Rack With Dual Doors And Air Conditioner For Outdoor Telecom Cabinet
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | ET7080100A-17U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case with pallets |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 3000 pcs/month |
|
Detail Information |
|||
| Material: | Galvanized Steel, Single Wall With Heat Insulation | Cooling: | Air Conditioner |
|---|---|---|---|
| Feature: | Dual Doors | Parts: | One Slide Rail Tray |
| Ingress Protection: | IP55 | LED Light: | Front And Rear Door Each One With Switch |
| Highlight: | Dual Doors 19inch Rack,Outdoor Telecom Cabinet 19inch Rack,Air Conditioner 19inch Rack |
||
Product Description
Floor Mounted 19inch Rack With Dual Doors and Air Conditioner For Outdoor Telecom Cabinet
Floor Mounted 19inch Rack With Dual Doors and Air Conditioner For Outdoor Telecom Cabinet Application:
- Satellite Communication
- Wireless Backhaul
- Cable Television
- Navigation & Positioning
- Military Installation
- Port Security
Floor Mounted 19inch Rack With Dual Doors and Air Conditioner For Outdoor Telecom Cabinet Features:
- Front and rear access to the inside equipment
- IP level: IP55
- Standard 19“ rack for installation
- Outdoor anti corrosion powder coating
- The cabinet is dustproof, sunproof and rainproof, can be used in outdoor harsh environment
- Cooling: DC 500W air conditioner
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding
- High integration, compact structure, easy installation and migration on later stage
- Anti-theft three point lock, excellent keyhole protection device
- All the screws & nuts are stainless steel material
- Support full design according to customer’s requirement
- All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A
Floor mounted Outdoor Telecom Cabinet Specification:
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1)External Dimension:W×D×H 700×800×1000mm (2)One compartment: including 19” rack. (3)With dual doors-front and rear door , with three point lock for outdoor cabinet. (4) Material: galvanized steel, single wall with thermal insulation. |
| 2 | Air Conditioner | 1 | Set |
Cooling Capacity: 500W Power Supply: 48VDC |
| 3 |
Power Distribution Unit |
1 | Set |
AC input: 1×2P/63A AC SPD: SPD40/60KA AC output: 5×1P/16A DC output: 1×1P/32A,2×1P/16A,2×1P/6A |
| 4 | Fan | 1 | Set | DC48V, 2 pcs with temp. controller |
| 5 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 6 | LED Lamp | 1 | PC | DC48V |
| 7 | Package | 1 | Set | Wooden Case |
Cabinet Diagram:

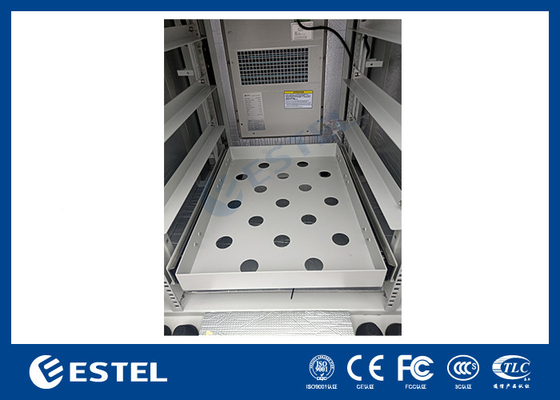

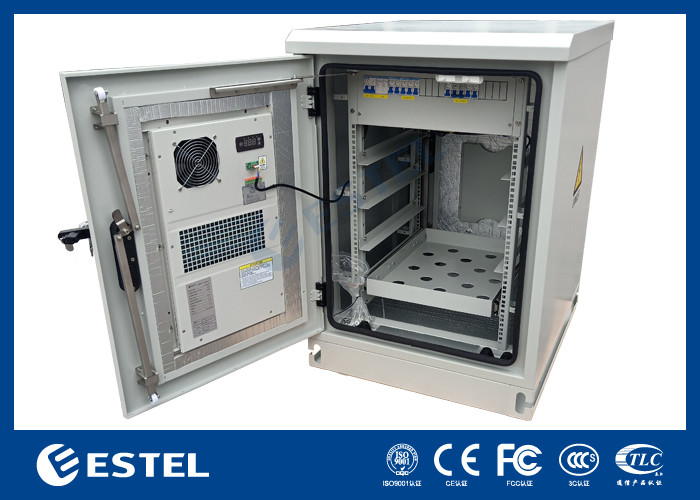

Cabinet Detail:
