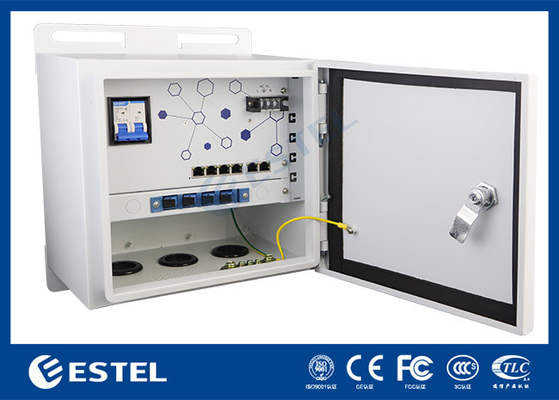

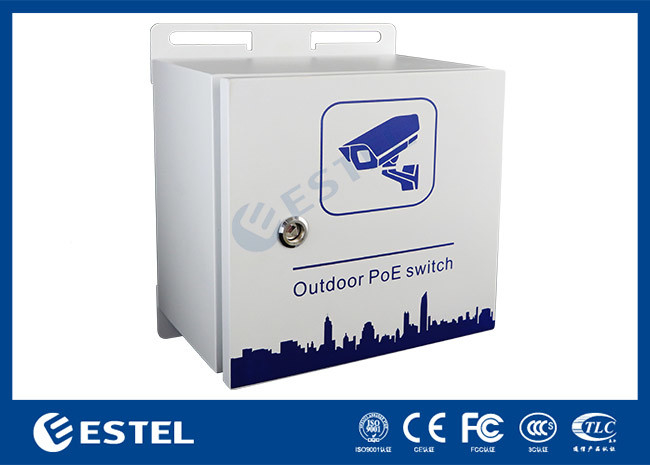

IP55 Outdoor PoE Switch Pole Mount Weatherproof Enclosure For Surveillance Monitoring
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001 |
| Model Number: | EQB2042PG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | Wooden Case |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 PCS per month |
|
Detail Information |
|||
| Install Method: | Pole Mounted | Application: | Surveillance Monitoring, Forest Monitoring |
|---|---|---|---|
| Protection: | IP55 | Color: | White |
| External Size: | W×D×H 280mm×200mm×260mm | Material: | Metal |
| Highlight: | IP55 Pole Mount Weatherproof Enclosure,Surveillance Monitoring Pole Mount Weatherproof Enclosure,PoE Switch Pole Mount Weatherproof Enclosure |
||
Product Description
IP55 Outdoor PoE Switch Pole Mount Weatherproof Enclosure For Surveillance Monitoring
IP55 Outdoor PoE Switch Pole Mount Weatherproof Enclosure For Surveillance Monitoring Features:
- AC220V mains power input, 60W DC52V power module inside.
- With 4*10/100/1000M PoE downlink ports and 2*10/100/1000M uplink ports;
- 6KV surge protection, 6KV contact / 8KV air ESD protection.
- The box adopts waterproof (protection level Ip55), anti-rust treatment, suitable for long time
- Fanless design
IP55 Outdoor PoE Switch Pole Mount Weatherproof Enclosure For Surveillance Monitoring specification:
| Parameter | Specifications |
| Power supply | AC100-240V, 50/60Hz |
| Consumption | Self consumption<5W, PoE output max. 55W |
| Downlink ports | Ports 1~4 10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at) |
| Uplink ports | Ports 5~6 10/100/1000Base-T RJ45 |
| PoE ports | Ports 1~4 support IEEE802.3af/at, end-span, 30W per port Max. |
| Cable and distance | Use cat5e/6,100m max. |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3z |
| Switch fabric | 12Gbps |
| Though put | 8.928Mpps |
| Buffer | 448K |
| MAC address table | 1K |
| Indicator |
Power: 1 *red ; Uplink5, 6: On RJ45 yellow and green LEDs indicate Link/Act Downlink 1~4: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE |
| Protection | Surge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact 8KV: air, standard:IEC61000-4-2 |
| SPD | AC lightning arrester, 385v AC@20KA , 2p, - 40 ～ 70 ℃, lower incoming line, dxh06-fcs / 2r40 |
| Working temperature | -20℃~65℃ |
| Storage temperature | -40℃~85℃ |
| Humidity | 0~95%(No condensation) |
| Dimension(L×W×H) | 280mm×200mm×260mm |
| Material | Metal |
| Colour | White |
| Net-weight | 8KG |

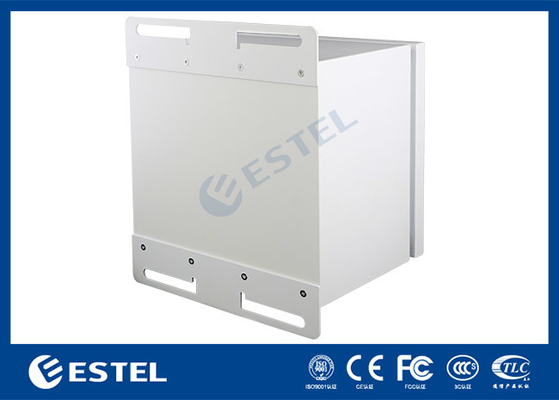

Structure:
Application:
These boxes are suitable for various outdoor environments, including industrial sites, construction sites, parks, street lighting, and other outdoor areas that require electrical equipment. They can be used to control power, lighting, security systems, and more.
