High Efficient DC Powered Air Conditioner DC48V 300W Cabinet Air Conditioner
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | DC03HDNC1A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 3 weeks |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 2000 pcs/month |
|
Detail Information |
|||
| Type: | Cabinet Air Conditioner | Mounting: | Door Mount |
|---|---|---|---|
| Operating Voltage: | DC48V | Application: | Outdoor Cabinet |
| Weight: | 7kg | Refrigerant: | R134a |
| Dimension(hl*w*d): | 348×150×200 | ||
| Highlight: | 300W Cabinet Air Conditioner,DC Powered Cabinet Air Conditioner,High Efficient Cabinet Air Conditioner |
||
Product Description

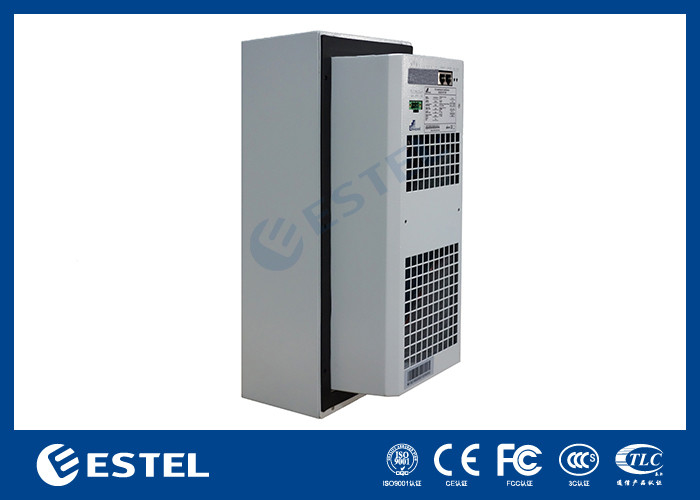

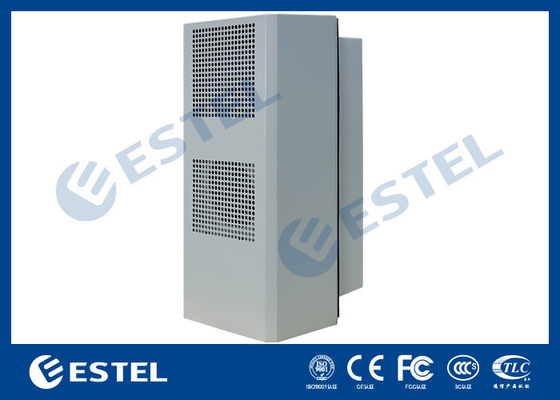

High Efficient DC Powered Air Conditioner DC48V 300W Cabinet Air Conditioner
Envicool DC Series Air Conditioner
Envicool is a professional thermal control solutions provider for outdoor cabinets.
Envicool has accumulated rich technological experience and lots of application in this field.
The DC series air conditioner is the result of Envicool technology applied in DC powered outdoor cabinet.
The cooling range is 300W~ 5000W.
High Efficient DC Powered Air Conditioner DC48V 300W is a compact air conditioner.
The design is optimized for applications with limited space available, but
where functionality and performance still cannot be compromised.
- -48VDC power input
- 300W cooling capacity@L35/L35
- Anti-cover design
- Door mounted – easy integration in outdoor cabinets
- Standard configuration with heater
- Wide working temperature range: -40ºC to +55 ºC w/ heater
High Efficient DC Powered Air Conditioner DC48V 300W BENEFITS
- Compatible size with TEC (Peltier cooling)
- Suitable for 1~2 banks battery chamber
- Energy saving
- Lifetime >10 years – minimum maintenance
- Environmental friendly – R134a and RoHS compliant
- IP55 and corrosion Proof
- Dedicated design by delay start
- RS485 for remote control
High Efficient DC Powered Air Conditioner DC48V 300W APPLICATIONS
- Battery Cabinet
- Equipment Cabinet
- Telecom Cabinet
- Optical Cabinet
High Efficient DC Powered Air Conditioner DC48V 300W Data Sheet
| Parameter Model | DC03HDNC1A | |
| Dimensions,Weight &Mount | ||
| External Dimensions (H x Wx D) | mm | 348×150×200 |
| External Dimensions (Hx Wx D)With Flange | mm | 400×181×200 |
| Weight | kg | 7.0 |
| Mounting Method | Door Mounted | |
| Application | Outdoor | |
| Environmental Protection &Performance | ||
| Working Temperature Range | ℃ | -40 to +55 |
| Noise Level | dB(A) | 60 |
| IP Protection Level | IP 55 | |
| Refrigerant | R134a | |
| RoHS Compliant | Yes | |
| Cooling/Heating Capacity | ||
| Cooling Capacity@L35/L35 | W | 300 |
| Heating Capacity | W | 300 |
| Power Consumption | ||
| Power Consumption@L35/L35 | W | 120 |
| Current@L35/L35 | A | 2.50 |
| Airflow | ||
| Internal Airflow | m3/h | 100 |
| Power Supply | ||
| Power Supply Range | VDC | -44~-58 |
| Rated operating voltage -Controller | VDC | -48 |
| Rated operating voltage -Cooling/Heating System | VDC | -48 |
| Max.Current | A | 5.0 |

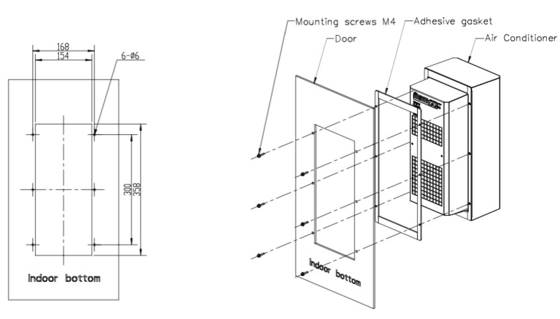

Dimension
