Network Outdoor Cabinet 19 Inch Rack 7U Weatherproof Enclosures With TEC Cooling
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | ESTEL |
| Certification: | IP55 |
| Model Number: | ET453070-7U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case with pallets |
| Delivery Time: | 35 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 4000 |
|
Detail Information |
|||
| Protection: | Weatherproof | Cooling: | TEC 200W |
|---|---|---|---|
| Mounting: | Pole Mounted | User Space: | 7U |
| Accessory: | LED Light | Original: | China |
| Highlight: | 19 Inch Network Outdoor Cabinet,TEC Cooling Network Outdoor Cabinet,7U Network Outdoor Cabinet |
||
Product Description
Network Outdoor Cabinet 19 Inch Rack 7U Weatherproof Enclosures With TEC Cooling
1. Network Outdoor Cabinet 19 Inch Rack 7U Weatherproof Enclosures Features
Our Weatherproof Enclosures have the solution for products in industrial environments with high demands on safety, durability, reliability and cost saving for the end user.
• Safety - tested and approved by third party testing laboratories.
• Durability - materials used give a high durability in tough conditions and environments.
• Reliability - high quality contacts ensure reliability. (IP55 or higher)
• Cost saving - designed for quick and easy installation.
• Construction - Body and door/cover are formed from 16 or 18 gauge cold-rolled steel. (1.0/1.2mm)
- w/ removable inner door are formed from sheet steel, depth adjustable
- Removable inner panel is formed from 14 or 16 gauge galvanized sheet
- Grounding and panel mounting hardware provided.
2. Network Outdoor Cabinet 19 Inch Rack 7U Weatherproof Enclosures Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 450×300×700mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack, 7U | |
| Door | With one front door, and three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, single wall thickness1.2mm | |
| Heat Insulation | 20mm PEF | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | TEC 48VDC 200W |
| Lighting | LED lamp | LED lamp 48VDC |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |

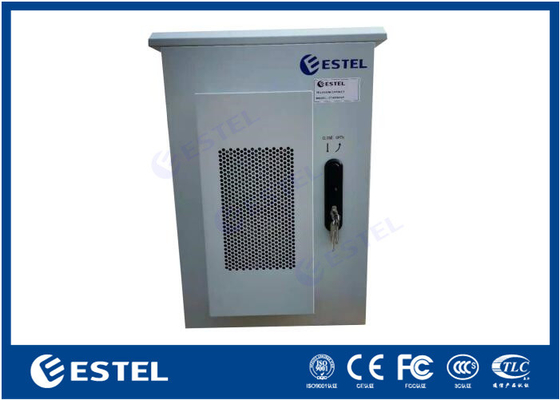

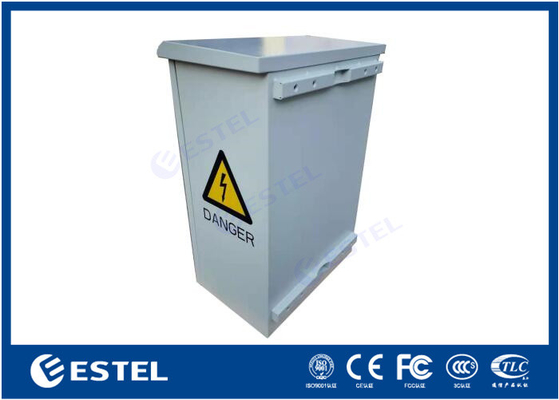

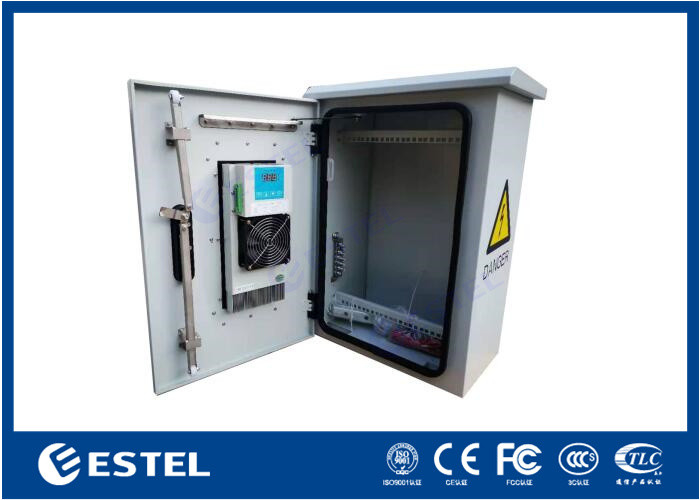

3. Network Outdoor Cabinet 19 Inch Rack 7U Weatherproof Enclosures Pictures
4.IP55/IP65
IP65= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Custom with cutouts,insulation, hinges, latches or locks
IP55= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
5. Applications of Outdoor Telecom Cabinet
6. Packing and Delivery
(1)Packaging: Wooden case with pallets
(2) Delivery:
By Express:Door to door, very convenient, don't need to clearance or pick-up
By Air:Airport to airport, you need to do the customs clearance and pick up the goods at your local airport
By sea: Port to port and you need to do the customs clearance and pick-up the goods at your local port
