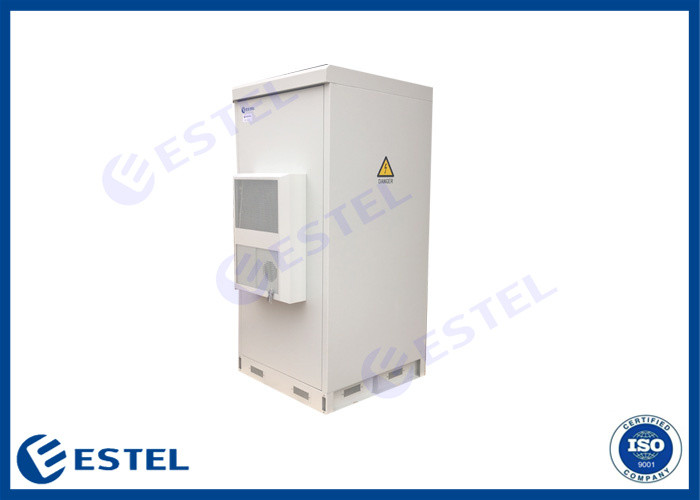

40U Galvanized Steel Outdoor Telecom Enclosure IP55 Single Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | ET9090210-254-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | L/C, Western Union, T/T |
| Supply Ability: | 5000 pcs/month |
|
Detail Information |
|||
| External Dimension:: | W*D*H 900*900*2100mm | Internal Dimension: | W*D*H 800*800*1800mm |
|---|---|---|---|
| Equipment Installation Method: | 19” Rack | Rack Space: | 40U |
| Door: | One Front Door | Material: | Galvanized Steel |
| Highlight: | Galvanized Steel Outdoor Telecom Enclosure,40U Outdoor Telecom Enclosure,40U outdoor electrical enclosure box |
||
Product Description
1. Outdoor Weatherproof Telecom Enclosure Features
This weatherproof telecom enclosure is very popular in the market. It has one compartment,one air conditioner and fans installed on the front door.It can support the installation of electronical equipments installed on 19 inch rack. It has one front door for easily access. This cabinet is suitable to be used in telecommunication system,wireless network system for different applications.
2. Outdoor Weatherproof Telecom Enclosure Application
· Environmental monitoring
· CCTV and security systems
· Base station
· Mobile & Radio, 3G 4G 5G, Tetra, Microwave
· Telecommunication
· Internet service provider
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension: W*D*H 900*900*2100mm Internal Dimension: W*D*H 800*800*1800mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack, 40U | |
| Door | With one front door, and three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, single wall with insulation | |
| Heat Insulation | 20mm PEF | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioner and fan |
| Lighting | LED lamp | LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | PC |
(1) External Dimension: W×D×H 900×900×2100mm Internal Dimension:40U (2) One compartment: 19” installation (3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) |
| 2 | Auxiliary Direct Ventilation Fans | 2 | PC | AC220V 50Hz installed on the front door. |
| 3 | Air conditioner | 1 | PC | 1500W, AC220V 50Hz |
| 4 | LED Lamp | 1 | PC | AC220V 50Hz |
| 5 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 6 | Power Distribution Unit | 1 | PC |
Grade B Lightning Proof AC Input: 63A/2P×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4 Input Voltage: AC220V, 60Hz UK type socket |
| 7 | Package | 1 | PC | Wooden Case |
5. Cabinet structure
(1) External Dimension: W×D×H 900×900×2100mm
Internal Dimension:40U
(2) One compartment: 19” installation
(3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
6. Cooling System Pictures
The air conditioner uses utility power input,allowing wide voltage range ,with high energy efficiency ratio.The air conditioner integrated universal intelligent controller,supporting 7*24 hours continuous operation.It supports RS485 communication and can be connected with customers' system.
· Cooling Capacity:1500W
· Power Supply: 220VAC,60Hz
7. Grounding Protection
(1)The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
(2)The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
(3)Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.
8. Cabinet picture
9. Quality Control Introduction
Our company resolutely implements the principle of quality first, we control and supervise the whole production process in strict accordance with the requirements of the ISO9001 system and the related implementation process. The quality department strictly controls all aspects like material inspection, production processes, product testing, shipment inspection and establishes traceable documents and product identification.
Our quality inspection team, is very familiar with the various standards, strict implementation of the standards required sampling and testing methods.
10. Package
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
