Pole Mounted IP55 TEC Outdoor Telecom Enclosure 19 Inch Non Corrosive
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | ET6565115-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 pcs/month |
|
Detail Information |
|||
| Dimension: | H*W*D 1150*650*650mm | Auxiliary Direct Ventilation Fans: | DC48V |
|---|---|---|---|
| TEC: | 100W | Door Detector: | One For Controlling LED Lamp, The Other For Open Door Alarm |
| LED LAMP: | 48V LED Lamps | Lock: | Special Lock For Outdoor Cabinet |
| Highlight: | TEC Outdoor Telecom Enclosure,IP55 Outdoor Telecom Enclosure,IP55 19 inch equipment rack |
||
Product Description
Pole Mounted IP55 TEC Outdoor Telecom Enclosure 19 Inch Non Corrosive
1. Description Of Outdoor Telecom Cabinet
Estel cabinets can also be configured to meet specific requirements with a range of options also available including cable management, thermal management, environmental protection and integration. The cabinet complete protection from particles and a good level of protection against water, All of our enclosures rigidly adhere to the guidelines, so you can count on outstanding and cost-effective enclosures.
2. Selling points and Feature Of Outdoor Equipment Cabinet
>>> IP55
>>> A different choice for the front door
>>> Available in different colors
>>> Available in different depths/widths as well as heights
>>> Grounding and earthing kits
>>> Thick & robust construction
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: H*W*D 1150*650*650mm |
| Layout | 1 compartment, the lower part is for installing batteries, and the upper part is for installing 19” equipment. | |
| Equipment Installation Method | 19″ Data Rack Rails | |
| Door | With one front door, and special lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate | |
| Structure | Welded | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | TEC air conditioner and DC48V fans |
| Temperature | Temperature | Working Temperature: 40°C ~ +55°C |
| Storage Temperature: -40°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
|
Radiation Intensity |
Solar Radiation Intensity |
1120 × (1±5%)W/m2 |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension: H*W*D 1150*650*650mm (2) 1 compartment, the lower part is for installing batteries, and the upper part is for installing 19” equipment. (3) With one front door , and special lock for outdoor cabinet (support padlock) ; (4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate; |
| 2 |
Auxiliary Direct Ventilation Fans |
4 | Set | DC48V |
| 3 | TEC | 1 | Set | 100W |
| 4 | Door detector | 1 | Set | One for controlling LED lamp, the other for open door alarm |
| 5 | LED LAMP | 1 | Set | 48V LED lamps |
5. Enclosure Cooling

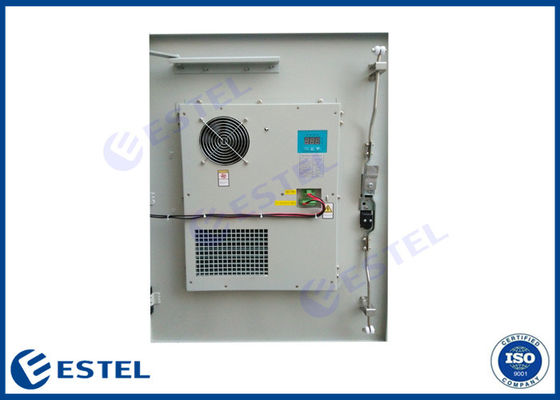

TEC air conditioner Cooling capacity:100W, DC48V; and 4pcs DC48V fans
6. Cabinet Structure
(1) External Dimension: H*W*D 1150*650*650mm
(2) With one front door , and special lock for outdoor cabinet (support padlock) ;
(3) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate;
7. Cabinet Layout Diagram:

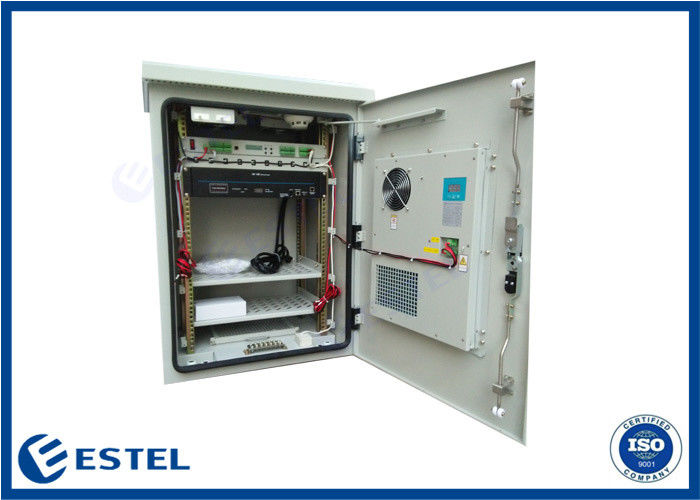

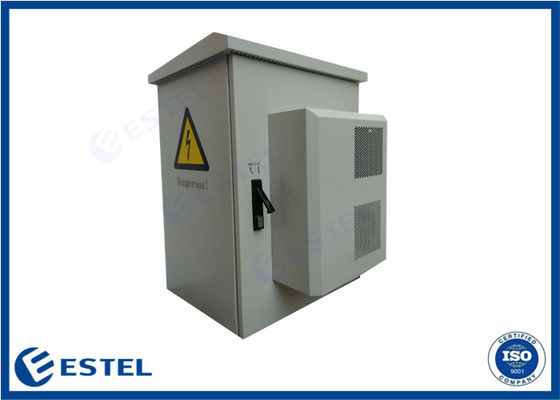

8.Cabinet picture
9. Connection and Fastening
(1) Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
(2) Door hinges use inner hinge mode.
10. Lock Theft Proof Design
(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
(2) Three point lock
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
