One Compartment 5G 19 Inch Data Rack 32U For CCTV Security Systems 750 750 1750mm
Product Details:
| Place of Origin: | Shenzhen, China (Mainland) |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number: | ET7575175-EQ-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |

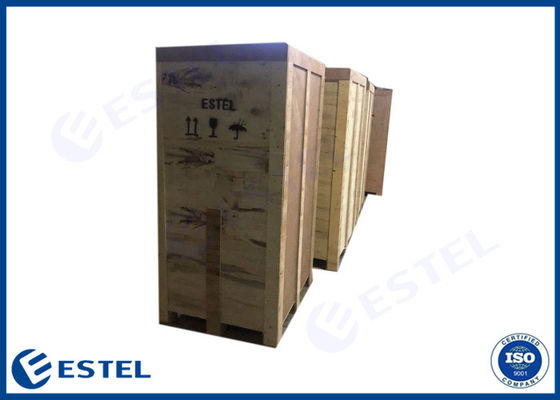

| Packaging Details: | Wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram |
| Supply Ability: | 5,000 sets per month |
|
Detail Information |
|||
| SIZE: | 1750mm High And 750mm Wide And 750mm Deep | Cabinet Application: | Telecommunication |
|---|---|---|---|
| Layout: | 1 Compartment | Door: | With One Front Door |
| Cooling: | Air Conditioner And Fans | Lighting: | 48VDC LED Lamp |
| Highlight: | 5G 19 Inch Data Rack,One Compartment 19 Inch Data Rack,5G outdoor telecom cabinet |
||
Product Description
One Compartment 5G 19 Inch Data Rack 32U For CCTV Security Systems
1. Application
This series cabinet is 1750mm High and 750mm Wide and 750mm Deep. For those who need more than just standard cabinet, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions. It provides a secure,climate controlled environment for any electronic equipment.
2. Cabinet Application
· Environmental monitoring
· CCTV and security systems
· Base station
· Mobile & Radio, 3G 4G 5G, Tetra, Microwave
· Telecommunication
· Internet service providers
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 750×750×1750mm (32U) |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rail | |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Steel, sandwich panel | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | air conditioner and fans |
| Lighting | LED lamp | 48VDC LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | PC | External Dimension: W×D×H 750×750×1750mm (32U) |
| 2 | Air Conditioner | 1 | PC |
Cooling capacity: 1.5KW, Power supply: 48VDC. |
| 3 | Fan | 2 | PC | 48VDC |
| 4 | Environment Monitoring Unit | 1 | PC | 19”, 1U, support SNMP communication, 48VDC |
| 5 | Water Sensor | 1 | PC | |
| 6 | Smoke Sensor | 1 | PC | |
| 7 | Temperature and Humidity Sensor | 1 | PC | |
| 8 | Door Sensor | 1 | PC | |
| 9 | Shock Sensor | 1 | PC | |
| 10 | LED Lamp | 1 | PC | 48VDC |
| 11 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |

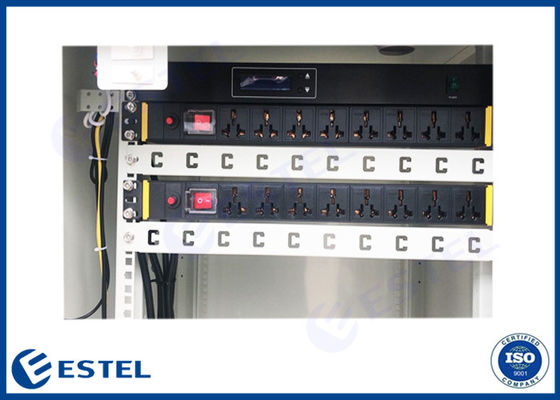

| 12 | AC PDU | 1 | PC | 1U, 19“, 8 way, 10A/250VAC |
| 13 | Package | 1 | PC | Wooden Case |
5. Enclosure Cooling
Air Conditioner Cooling capacity: 1.5KW
48VDC Fan
6. Cabinet Structure
(1) External Dimension: 750×750×1750mm
(2) 1 compartment
(3) With one front door , and special lock for outdoor cabinet (support padlock) ;
(4) Material: High quality galvanized steel
7. Cabinet Dimension
External Dimension: W×D×H 750×750×1750mm (32U)
8. Cooling System Pictures
The air conditioner uses utility power input,allowing wide voltage range ,with high energy efficiency ratio.The air conditioner integrated universal intelligent controller,supporting 7*24 hours continuous operation.It supports RS485 communication and can be connected with customers' system.
· Cooling Capacity:1500W
· Power Supply: 220VAC,50Hz

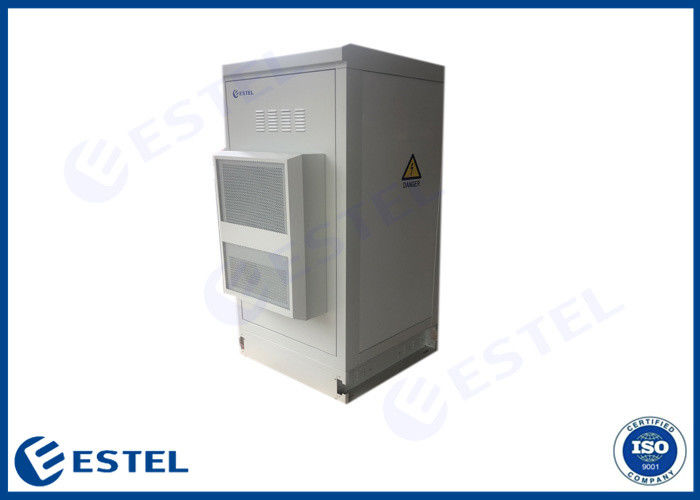

9. Cabinet Picture
