Double Door Sunproof Outdoor Telecom Enclosure Galvanized Steel Rainproof
Product Details:
| Place of Origin: | Shenzhen, China (Mainland) |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number: | ET7575120--2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram |
| Supply Ability: | 5,000 sets per month |
|
Detail Information |
|||
| Doors: | Double Door | Installation: | 19 Inch Device |
|---|---|---|---|
| Dimension: | H*W*D 1200*750*750mm | Structure: | Welded |
| Temperature Control: | TEC Air Conditioner And DC48V Fans | Relative Humidity: | 5% ~ 100% |
| Highlight: | Sunproof Outdoor Telecom Enclosure,Rainproof Outdoor Telecom Enclosure,Rainproof outdoor network rack |
||
Product Description
Double Door Sunproof Outdoor Telecom Enclosure Galvanized Steel Rainproof
1. Introduction
We offer a variety of outdoor enclosures for telecommunications equipment. If one of our standard products doesn’t quite meet your application requirements, we can modify the design to create the ideal outdoor product for your needs. We can also collaborate with you and your team to create new products built to your specifications. Before you purchase any telecommunications cabinet,please contact us
2. Selling points and Feature Of Outdoor Equipment Cabinet
- 19 inch device installation;
- Cable splicing and protection function;
- Welded forming with galvanized steel sheet, outdoor powder spouted at the inside and outside
surface;
- Heat-isolation material filled in the interior.
- The cabinet with IP55 protection level is dustproof, sunproof, and rainproof, especially suitable for the outdoor environment.
- The cabinet uses air conditioners as a cooling system, which can effectively reduce the temperature in the cabinet.
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: H*W*D 1200*750*750mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19″ Data Rack Rails | |
| Door | With one front door and one rear door, and special lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel; 1.3mm thick outer plate, 0.9mm thick inner plate | |
| Structure | Welded | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | TEC air conditioner and DC48V fans |
| Temperature | Temperature | Working Temperature: 40°C ~ +55°C |
| Storage Temperature: -40°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
|
Radiation Intensity |
Solar Radiation Intensity |
1120 × (1±5%)W/m2 |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension: H*W*D 1200*750*750mm (2) 1 compartment (3) With one front door and one rear door, special lock for outdoor cabinet (support padlock) ; (4) Material: galvanized steel; 1.3mm thick outer plate, 0.9mm thick inner plate; |
| 2 |
Auxiliary Direct Ventilation Fans |
4 | Set | DC48V 2pcs |
| 3 | Air conditioner | 1 | Set | 300W |
| 4 | Door detector | 1 | Set | One for controlling LED lamp, the other for open door alarm |
| 5 | LED LAMP | 1 | Set | 48V LED lamps |
5. Enclosure Cooling
Air conditioner Cooling capacity: 300W and 2pcs DC48V fans

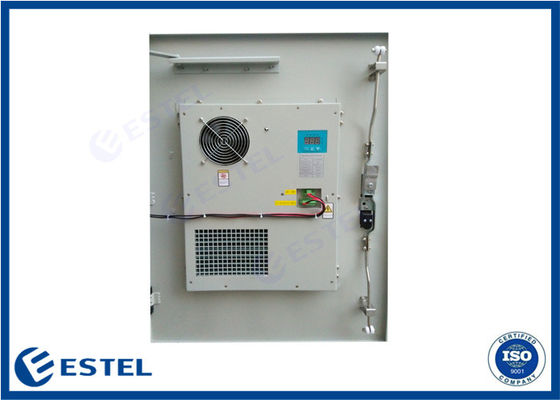

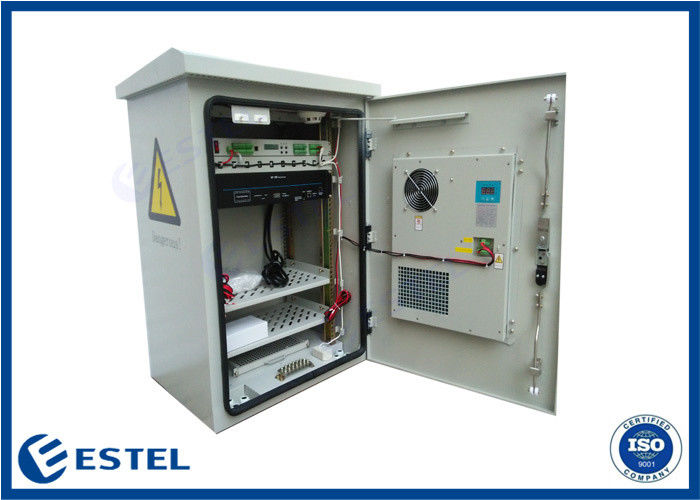

6. Cabinet Picture:
7. Company Introduction
The company is committed to building a complete communications equipment industry chain. At present, the company has initially built to complete its wholly-owned subsidiaries: from upstream product definition, industrial design, resource allocation, channel sales links. Cabinet design and development, electronic research and development, production and assembly, warehousing logistics part. Perfect organizational structure reasonable allocation of resources to become an indispensable help for the company's rapid development, but also will derive more strong market performance brands.
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
