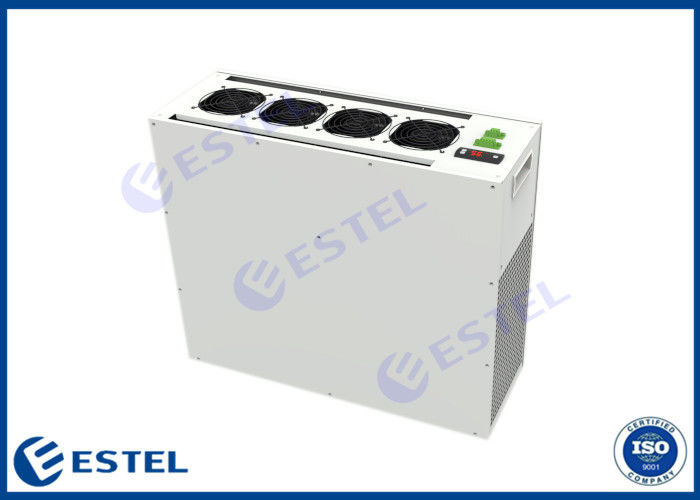

R134A 2000W Cooling Capacity Kiosk Air Conditioner
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO，CE, CCC, ROHS |
| Model Number: | E542622000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Depending on order quantity |
| Packaging Details: | Wooden case |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000 sets per month |
|
Detail Information |
|||
| Cooling Capacity(L35/L35): | 2000W | Heat Capacity(optional): | 1000W |
|---|---|---|---|
| Input Voltage Range: | 220±15%VAC~60Hz | Refrigerant: | R134a |
| Installation: | Outdoor Kiosk With Single Screen | External Dimension (W × H × D): | 680×569×250mm |
| Highlight: | 2000W Cooling Capacity Kiosk Air Conditioner,R134A Cooling Capacity Kiosk Air Conditioner,R134A |
||
Product Description
2000W Cooling Capacity 1000W Heating Capacity
LCD Kiosk Air Conditioner 220VAC 60Hz R134a
Model: E542622000
Introduction

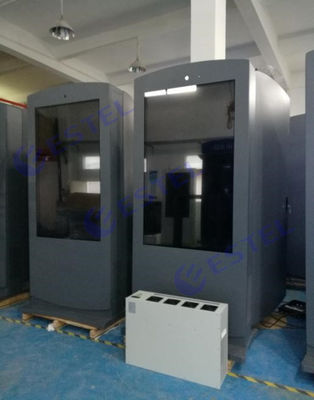

The air conditioning is specially designed for outdoor kiosks. With electronic components inside the kiosk continue working, there will be more and more heat inside the kiosk, that may cause very hot inside environment and finally cause the electronic components failure. After integrated with air conditioning, outdoor kiosks can be operated continuously 24/7 in temperatures from -40⁰C to +55⁰C. The modular structure of kiosk gives easy access for maintenance work.
Technics
| Item | Unit | Parameter |
| External dimension (W × H × D) | mm | 680×569×250 |
| Installation | Outdoor kiosk with single screen | |
| Operating Temperature Range | ⁰C | -40 to +55 |
| IP Grade | IP55 | |
| Refrigerant | R134a | |
| Input voltage range | 220±15%VAC~60Hz | |
| Cooling capacity(L35/L35) | W | 2000 |
| Rated input power(L35/L35) | W | 880 |
| Rated current (L35/L35) | A | 4.0 |
| Maximum Operating current | A | 6.0 |
| Heat capacity(optional) | W | 1000 |
| Noise | dB(A) | 64 |
| Weight | Kg | 32 |
| Air Volume of Inner Circulation | m3/h | 640 |
Features
• The outdoor kiosk air conditioner is 220VAC 60Hz powered.
• The air conditioning is for outdoor application, with IP55 protection.
• Cooling capacity: 2000W, heating capacity: 1000W, optional.
• The kiosk air conditioner offered a reduction in kiosk equipment failure and repair by preventing them from overheating.
• High reliability and long life time.
• Low noise level.
• Working temperature range: -40 to +55.
• Multi-function alarm output, support RS485 communication.
Cooling Function
When the temperature inside kiosk is higher than cooling start temperature, the air conditioner will start to cool. When the temperature inside kiosk is lower than cooling stop temperature, the air conditioner will stop cooling.
| Parameter | Default value | Setting range | Unit | Note |
| Cooling starting temperature | 35 | [20～40] | ⁰C | Cooling stopping temperature = Cooling starting temperature- Cooling return difference |
| Cooling return difference | 6 | [3～10] | ⁰C |
Heating Function (Optional)
When the temperature inside kiosk is lower than heating starting temperature, it starts heating; when the temperature inside kiosk is higher than heating stopping temperature, it stops heating.
| Parameter | Default value | Setting range | Unit | Note |
| Heating starting temperature | 5 | [-10～15] | ⁰C | Heating stopping temperature= Heating starting temperature+ Heating return difference |
| Heating return difference | 10 | [3～15] | ⁰C |

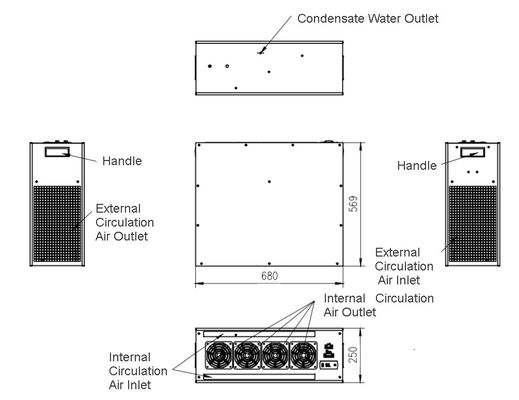

2000W Kiosk Air Conditioner Drawing
