5000W 1350*550*300mm Outdoor Cabinet Air Conditioner
Product Details:
| Place of Origin: | China |
| Brand Name: | ESTEL |
| Certification: | ISO9001, CE, RoHs |
| Model Number: | ET050ED |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 8000 pcs/month |
|
Detail Information |
|||
| Type: | Outdoor Cabinet Air Conditioner | Condition: | New |
|---|---|---|---|
| Mounting: | Door Mount | Operating Voltage: | DC48V |
| Weight: | 85kg | Refrigerant: | R134a |
| Dimension(hl*w*d): | 1350*550*300 | Power Consumption@L35/L35: | 1300W |
| Surface Treatment: | Outdoor Powder RAL7035 | Cooling Capacity: | 5000W |
| Highlight: | 1350*550*300mm Outdoor Cabinet Air Conditioner,5000W Outdoor Cabinet Air Conditioner,5000W cabinet air conditioning units |
||
Product Description
Industry High Cooling Capacity High Efficient 5000W Door Mount DC Outdoor Cabinet Air Conditioner Air Conditioning
Application
This series of products are designed for communication or related industrial equipment applications of high-performance DC type air conditioning unit, cabinet internal devices suitable for heat, temperature sensitive, and inside and outside completely isolated applications.
Feature
* Remote measuring, remote communication, remote control, which can realize multiple au
tomatic protection and comprehensive self-testing function;
* DC Air conditioner, Power supply voltage range;
* Fit for harsh condition (T3), R134a refrigerant ;
* Low power consumption design with (SEER≥5.5);
* LED display, all the settings can changed at the field;
* Dry contact alarm output, NO/NC optional;
* Anti-theft design, without the protection cover.
* Strict process control and international brand parts deployed to ensure high quality and product;
Conform to the standard
| Standard | Description |
| GB/T 17626.7-1998 | Electromagnetic compatibility(EMC) |
| GB4706.1 | Safety household and similar electrical appliance |
| GB4798.1 |
Environmental conditions existing in the application of electric and electronic products - storage |
| GB4798.2 |
Environmental conditions existing in the application of electric and electronic products - transport |
| GB4798.3 |
Environmental conditions existing in the application of electric and electronic products - use |
| CE | The third party certification |
Technical Data
| Product Model | Unit | ET050ED |
| External Dimensions (H x W x D) | MM | 1350*550*300 |
| Weight | KG | 85 |
| Mounting Method | Semi-embedded Mounting | |
| Application | Outdoor | |
| Working Temperature Range | ºC | -15 to +55 |
| Noise Level | dB(A) | 67 |
| IP Grade | IP | IP55 |
| Refrigerant | R134a | |
| CE & RoHS Compliant | YES | |
| Cooling Capacity@L35 / L35 | W | 5000 |
| Internal Airflow | M3/h | 1200 |
| Power Consumption@L35/L35 | W | 1300 |
| Input Voltage | VDC | 48 |
| Surface Treatment | HZ | Outdoor powder RAL7035 |
Cooling Capacity Chart and Power Consumption Chart
Dimension Diagram

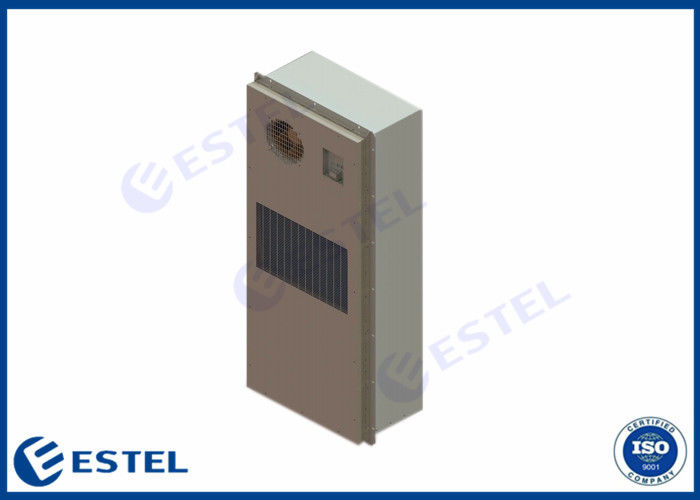

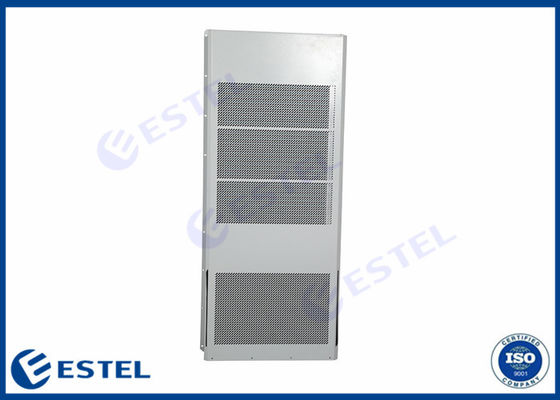

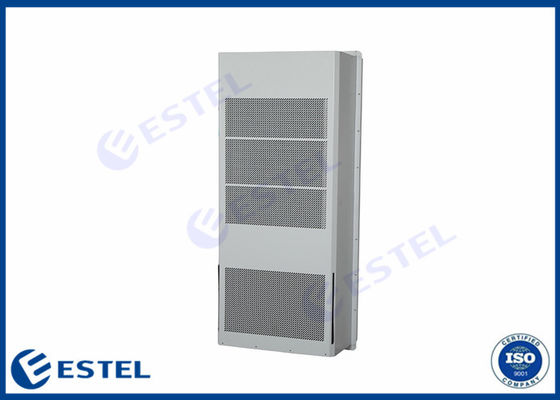

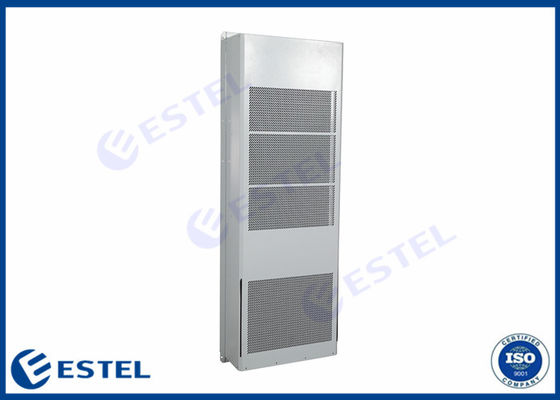

Product Picture
Installation Instructions
In order to avoid short circuit of air duct, it is suggested to make effective isolation between inner air inlet and outlet.
P.S. This product is free of cover, customers don’t need to install additional cover.
1. If the customer needs to install a protective cover, in order to ensure enough circulation of air, the opening rate of the air inlet
and outlet should be greater than 60%. It is very important to prolong the unit life and reduce the maintenance frequency.
2. The air inlet and outlet of the protective cover should prevent short circuit of air duct, so that the air-con can get the best cooling effect.
3. Due to the opening of the housing problems caused by the fault, not in the scope of the warranty
